Wöhler VIS 500 Inspection Camera

with pan and tilt camera head Ø 40 mm
Order no. 11508

Wöhler VIS 500 Inspection Camera

To get a clear view, rely on an inspection camera from the specialist: The Wöhler VIS 500 inspection camera offers the tried and tested case system with brand new technology - and this allows you to proceed even more purposefully during your operations. Thanks to the exchangeable camera heads, you are perfectly equipped for all operations. You simply control pan and tilt camera head via a key pad, so that you have everything in view even in dark pipes. The monitor then provides you with sharp and true-colour images on which you can see every detail exactly. This means you no longer spend your time in assumptions or misjudgements. Instead, you plan your operation on the basis of your video inspection. You can choose to store images and videos in the camera‘s large internal memory or on a USB stick.

Please note: As soon as you watch the video, information about it is transmitted to YouTube. You can find more information about this under read more
Absolutely suitable for technicians

We know your everyday life and have thought of everything: You don‘t have to be squeamish with the Wöhler VIS 500. If the camera is dirty, take the rod and pole out of the case in one easy step. Then spray the case and reel with water. It couldn‘t be easier.

TFT display

Sharp picture, clear menu structure and a firm grip in the hand. The color camera head can be swiveled from left to right by 180° and rotated by 360°. The glare shield can be stored in the case lid and plugged directly onto the monitor when needed. The monitor then provides you with high-resolution and true-colour images on which you can see every detail exactly.

Report in the app

With the Wöhler VIS 500 inspection camera, you are perfectly equipped for the future The camera‘s WLAN interface makes it possible to view images and videos in the large camera display and simultaneously in the smartphone or tablet display. This way, several people can follow the inspection live at the same time, even if they have positioned themselves quite differently. The image files are transferred from the camera to the app via WLAN and after the inspection you can create an illustrated report in just a few minutes, which you can send directly from your smartphone to your office address, the customer or the insurance company with one click.

Recommended Accessories
Product ID 7430
Product ID 4753

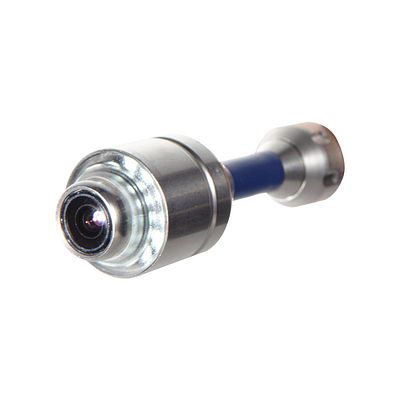

Product ID 8920

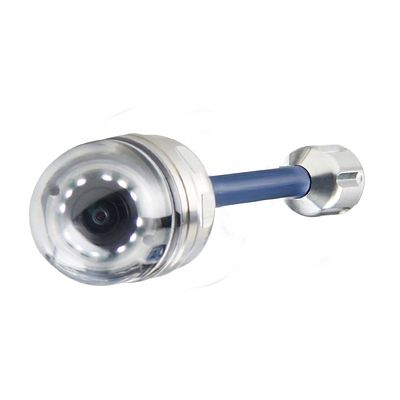

detachable, pan and tilt
Product ID 8930
for camera heads Ø26mm and Ø40mm
Product ID 8894
for Wöhler Camera Head Ø40mm
Product ID 3675
Product comparison


VIS 250

VIS 350

VIS 500

VIS 700 HD

Pan and tilt camera head 1.5"





Color camera head 1" dia

optional & interchangeable

optional & interchangeable

optional & interchangeable






720 x 576p

720 x 576p

720 x 576p

1280 x 720p (HD)

Comment Function





Keyboard integrated in case

Keyboard integrated in case

Control pad on monitor unit

Joystick / Touchscreen

Anti slide stand

Optional anti slide mat

Optional anti slide mat

Integrated anti-slide pads

Integrated anti-slide pads

Adjustable focus




Object distance measurement function




Push rod distance counter

Voice recording



via optional headset

Display position and angle


Video & Photo recording

4 GB SD memory card

4 GB SD memory card

4 GB internal memory or optional USB-stick

8 GB internal memory or optional USB-stick

Home function


Transmitter in camera head

Wohler VIS app incl. report function



Operating time

2 x 2 hours

2 x 2 hours

6 hours

4 hours

different configurations possible



Removable camera rod



All properties
Modular system

one monitor, many applications through upgrade sets

Intuitive handling

with uniform operating concept of the Wöhler VIS series

Position and angle indication

of the camera head in the display

All-round view

Waterproof rotatable and pan and tilt camera head Ø 40 mm

Bright illumination

with camera LEDs and optional additional lighting

Sound and voice recording

via headset

Storage of photos and videos

Documentation on site for you and your customers


High resolution images

Home function

for aligning the camera head in a straight position - display parallel to the pipe

Easy cleaning

Double-shell case with separate compartment for the camera rod for cleaning with water


Integrated transmitter in the camera head enables exact localisation of the camera head

Wöhler video inspection app

operation, image view and report

Mains-independent operation

due to lithium-ion battery with up to 6 hours working time


Direct storage of photos and videos on the integrated memory (4 GB) or on a USB stick

Additional Information
Visual duct, flue gas and ventilation system inspection

Scope of delivery:
Wöhler VIS 500 monitor unit with 7" TFT widescreen colour monitor incl. 2 m connection cable (monitor removable)
Glare protection
Lithium-ion battery 6 h operation time
Data storage: Internal memory 4 GB expandable with USB stick
Wöhler pan and tilt camera head Ø 40 (detachable)
Camera rod Ø 6.5 mm / 30 m long (removable for cleaning)
USB mains charger with USB-C cable
Double sided suitcase
Replacement plastic domes (3 pieces)
